XN75L
Wheel Excavator

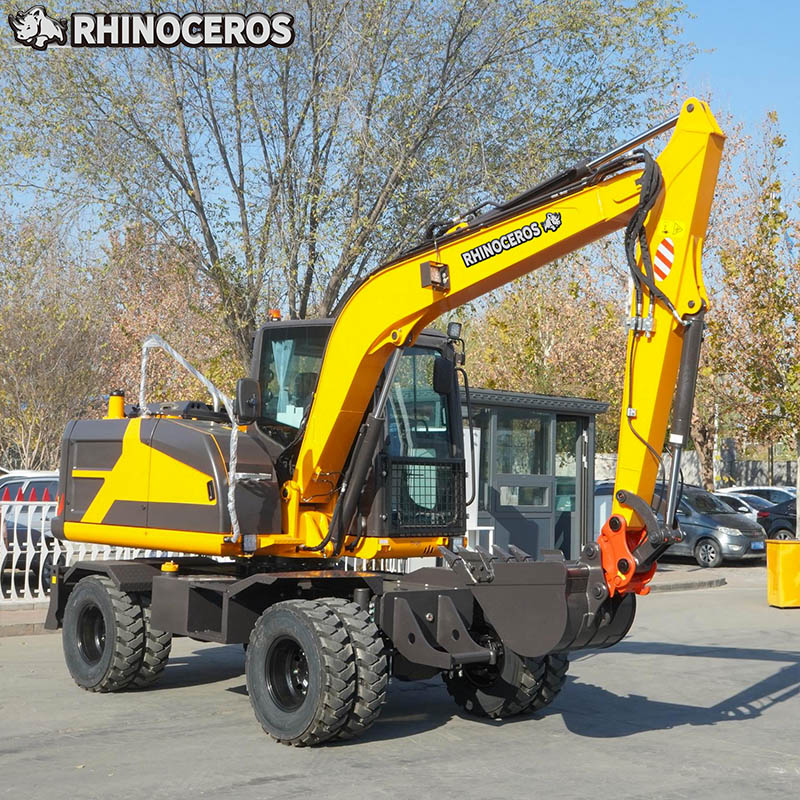

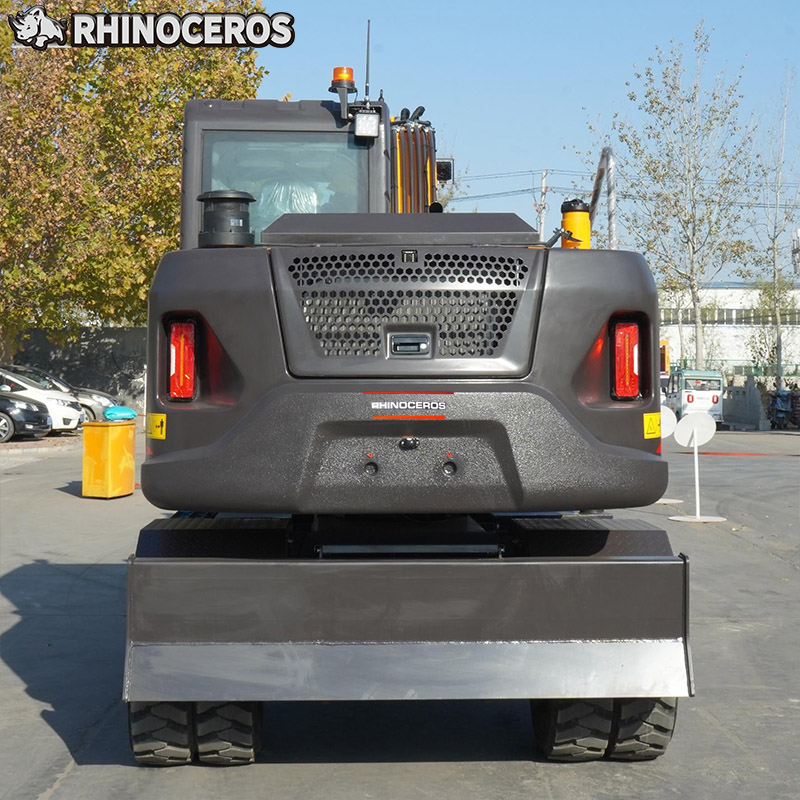

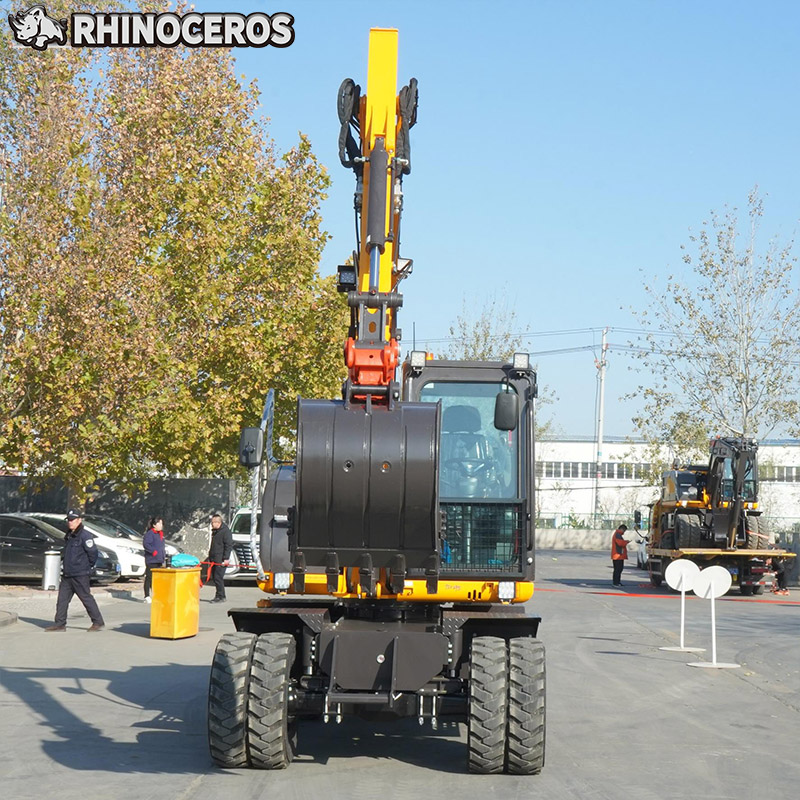

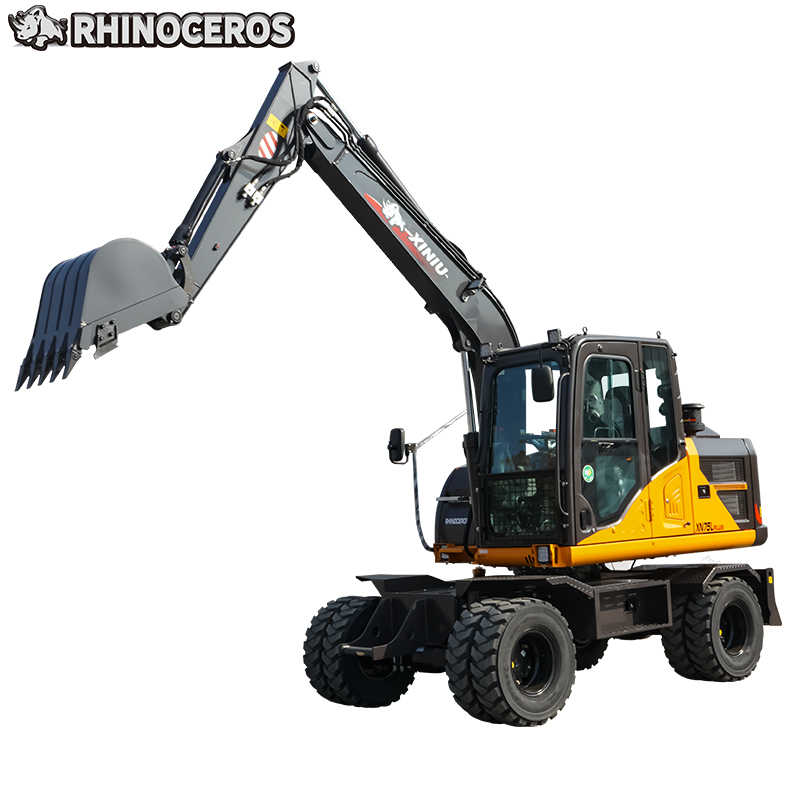

XN75L Wheel Excavator – 7 T Mobile Hydraulic Excavator with Load‑Sensitive System & Automatic Transmission
One of the most popular wheeled excavators currently available, with different emission engines to choose from, meeting the needs of any oil type in any region. The large displacement motor provides even stronger power.
•YANMAR/YUCHAI Engine
•Iron counterweight
•107L displacement walking motor
•Automatic transmission
Key
Specifications
| XN75L | ||
|---|---|---|
| Machine Weight | 6900 kg | 15212 lbs |
| Bucket Capacity | 0.27 cbm | 9.5 ft³ |
| Width | 2025 mm | 79 in |
| Max. Travel Speed | 35 km/h | 21.7 mph |
| Engine Brand | YANMAR/YUCHAI | |
| Power | 36.8 kw | 49 hp |
| Max. digging radius | 6538 mm | 255 in |
| Max. digging depth | 3310 mm | 129 in |
| 6905kg |
| 0.27cbm |
| 2025mm |
| 35km/h |
| Yuchai |
| 36.8kw |
| 6538mm |
| 3310mm |
Features
Patented Joint Tires
Patent joint tire, resistant to cutting and stone trapping.
One-Key Controls
One key controls the balance cylinder and four-wheel brakes, making operation more convenient
Load-Sensitive Hydraulic System
The entire vehicle adopts a load-sensitive hydraulic system, which has a faster response speed
Wheel-Side Deceleration Axle
Wheel side deceleration axle, complex road conditions, better passability
Video
