The Backyard Champion: Why the Rhinoceros MY10-9 is the Ultimate 0.9-Ton Micro Digger

Backyard Operation Fact-Check:

Endurance Power: The 11L fuel tank combined with the Koop 192F engine allows for 8-10 hours of standard trenching on a single fill.
Utility Reach: A maximum digging depth of 1,640 mm comfortably exceeds the standard 1,200 mm frost-line requirement for residential pipes.
Access Flexibility: The 950 mm fixed chassis width is engineered to clear a standard 36-inch (914 mm) side-gate with just 2 inches of clearance on each side.
Operating Mode: Standard with Dual-Sided Control, allowing operators to enter/exit from either side—a lifesaver in tight alleys.

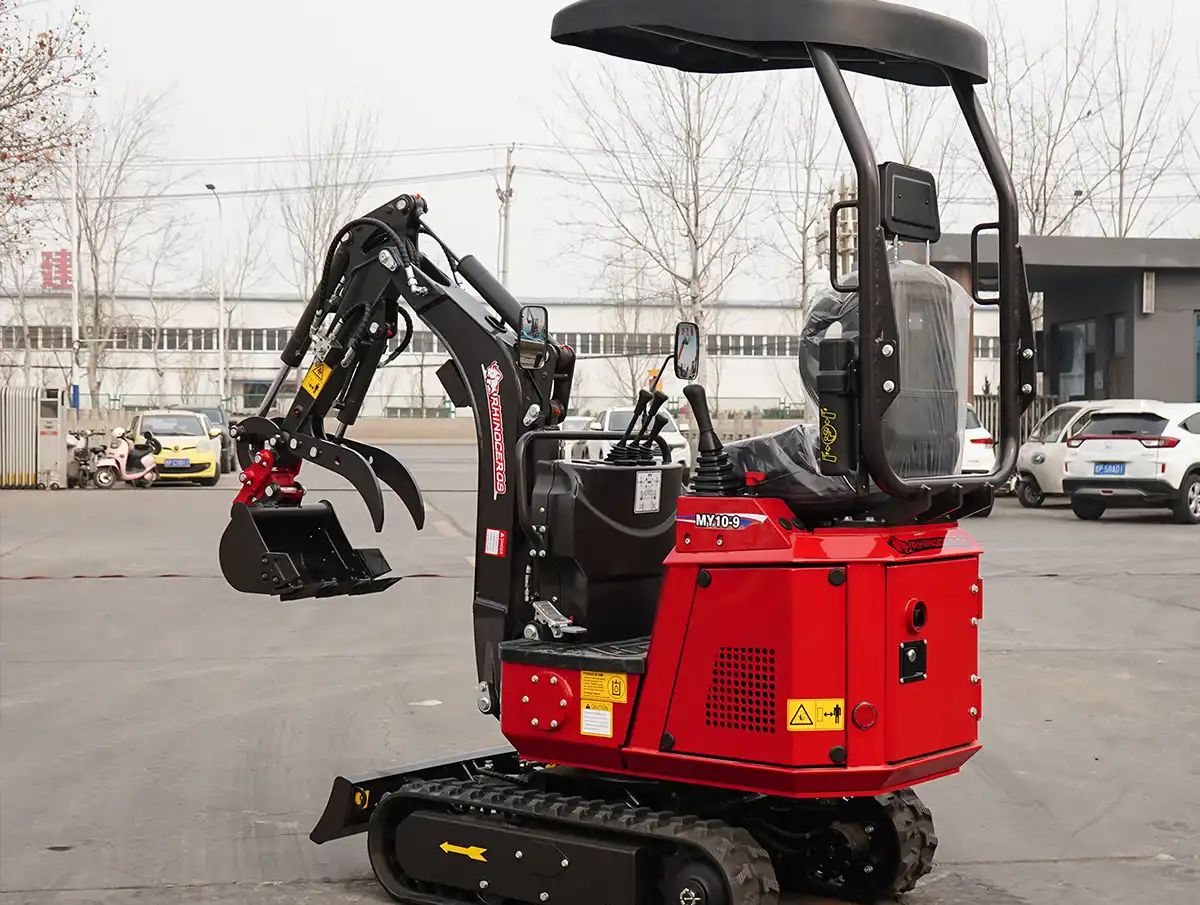

If you've spent a weekend with a pickaxe and a shovel trying to dig a drainage trench, you know that human labor has its limits. For the price of a few weeks of hired help, you can own a Rhinoceros MY10-9. It’s the smallest, "punchiest" tool in our lineup, designed specifically for the guy who needs to get into a backyard that wasn't built for machines.

Actually, as an operator, the biggest frustration with micro diggers is ergonomics. Most of them force you to be a gymnast just to get into the seat. Here is why the MY10-9 design, with its dual-sided entry and 940kg "sweet spot" weight, is changing the game for DIYers and landscapers.

The "Small Digger" Spec Matrix: MY10-9 Performance

Don't let the 0.9-ton tag fool you. In the world of narrow access, smaller numbers usually mean bigger profits.

Technical Metric	Rhinoceros MY10-9 Value	Real-World Application
Operating Weight	940 kg / 960 kg	Tows easily on a standard single-axle utility trailer.
Engine Model	Koop 192F (7.6 kW)	Proven air-cooled diesel reliability with simple maintenance.
Max. Digging Depth	1,640 mm (5.4 ft)	Deep enough for septic lines, footings, and pool prep.
Chassis Width	950 mm (37.4 in)	Fits through standard doorways and garden gates.
Control Pattern	ISO/SAE Optional	Matches the muscle memory of pro-operators.

Precision in the Corners: Dual-Sided Control

Here is the deal: when you’re working between a house foundation and a fence, you usually only have one way out. Traditional micro diggers have a "dead side" blocked by levers. The MY10-9 features Dual-Sided Control. This means you can operate and exit the machine from either the left or right side.

To be honest, this isn't just about comfort; it's about safety. If you’re digging a trench and the ground shifts, having two exit paths is a critical engineering feature that many budget machines overlook. Plus, the swing boom allows you to offset your digging, so you can trench perfectly parallel to a wall while the machine stays centered for maximum traction.

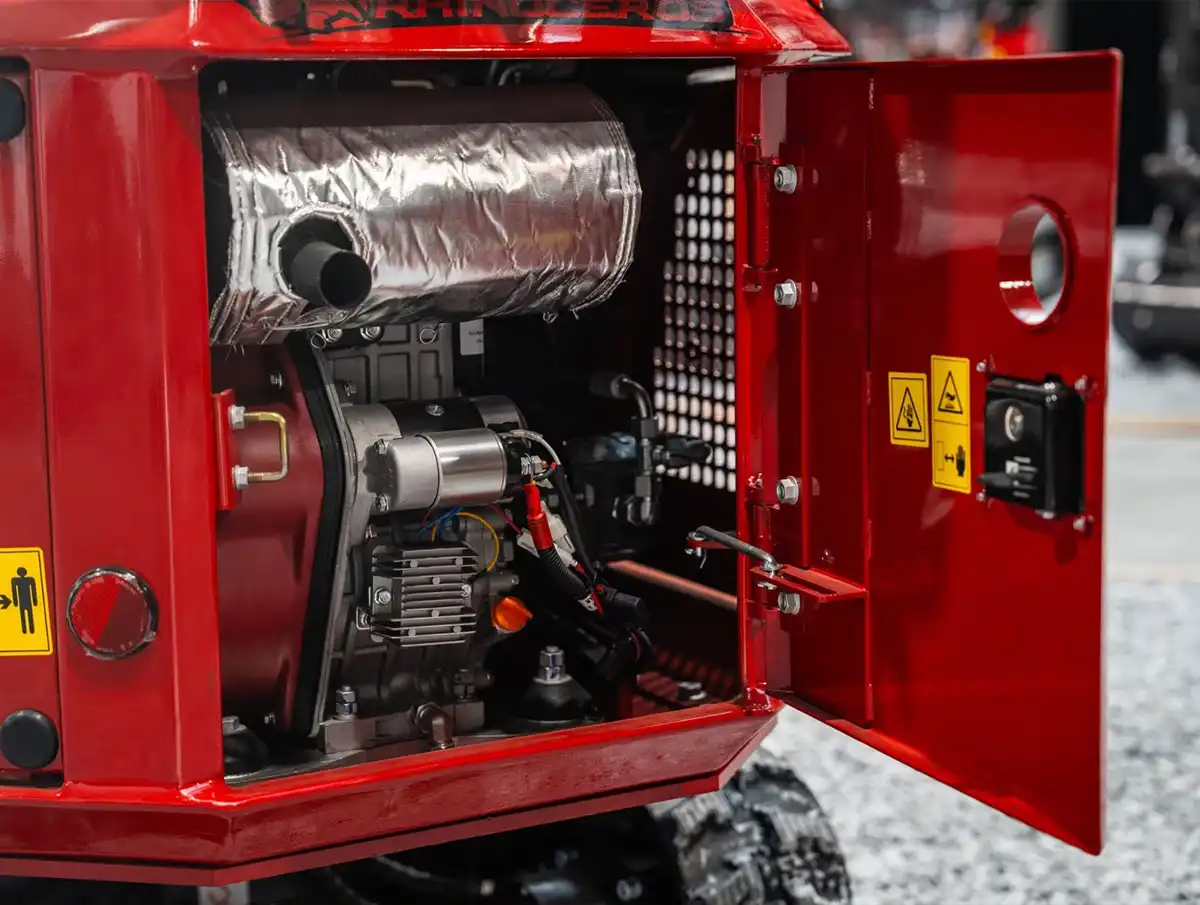

Koop 192F: The Workhorse Engine

Landscaping projects don't need a 50hp monster; they need a steady, fuel-efficient heartbeat. The Koop 192F single-cylinder diesel is the "small block" of the micro-excavator world. Actually, it's incredibly simple to service. With the 11L fuel tank, I’ve seen owner-operators finish an entire backyard leveling project without once touching a jerry can. It’s pure mechanical simplicity—no complex computers, just metal, oil, and 7.6 kW of digging power.

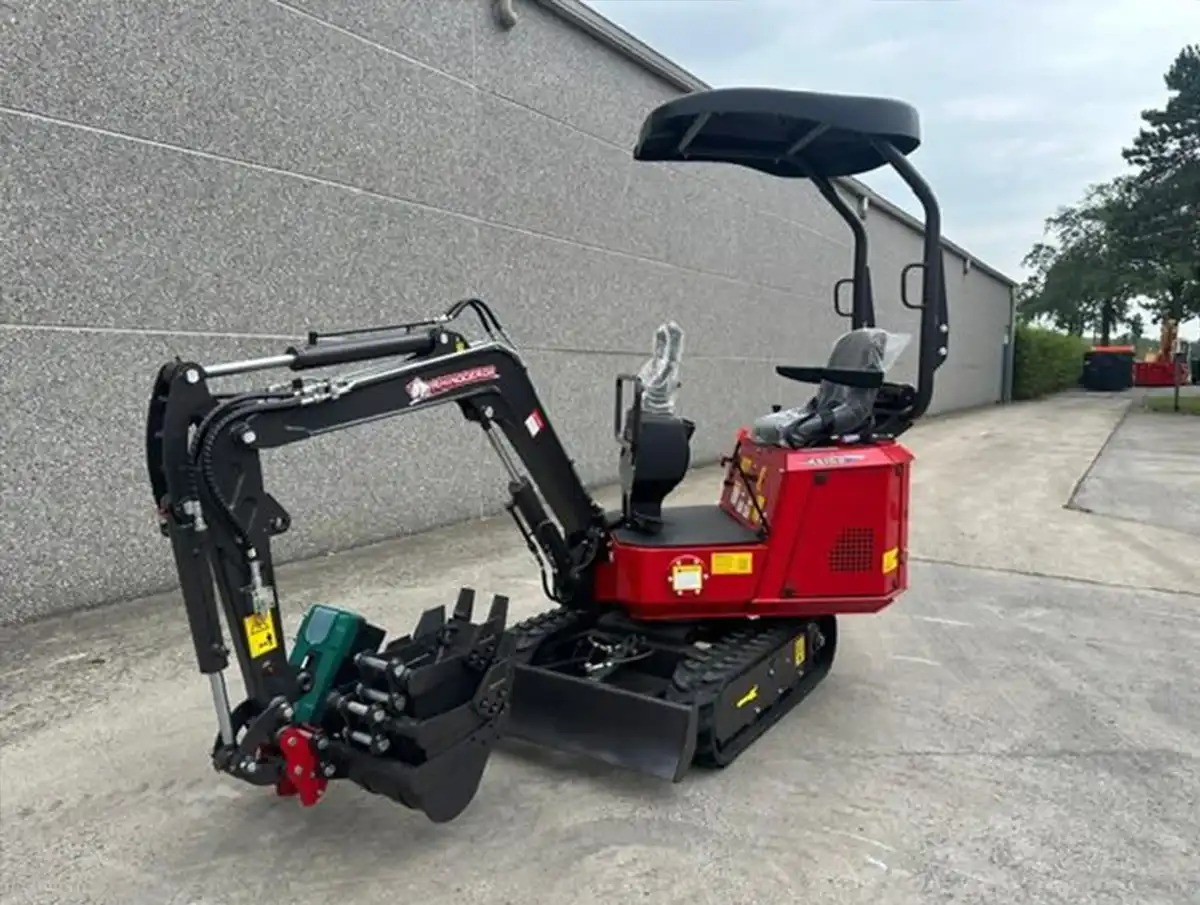

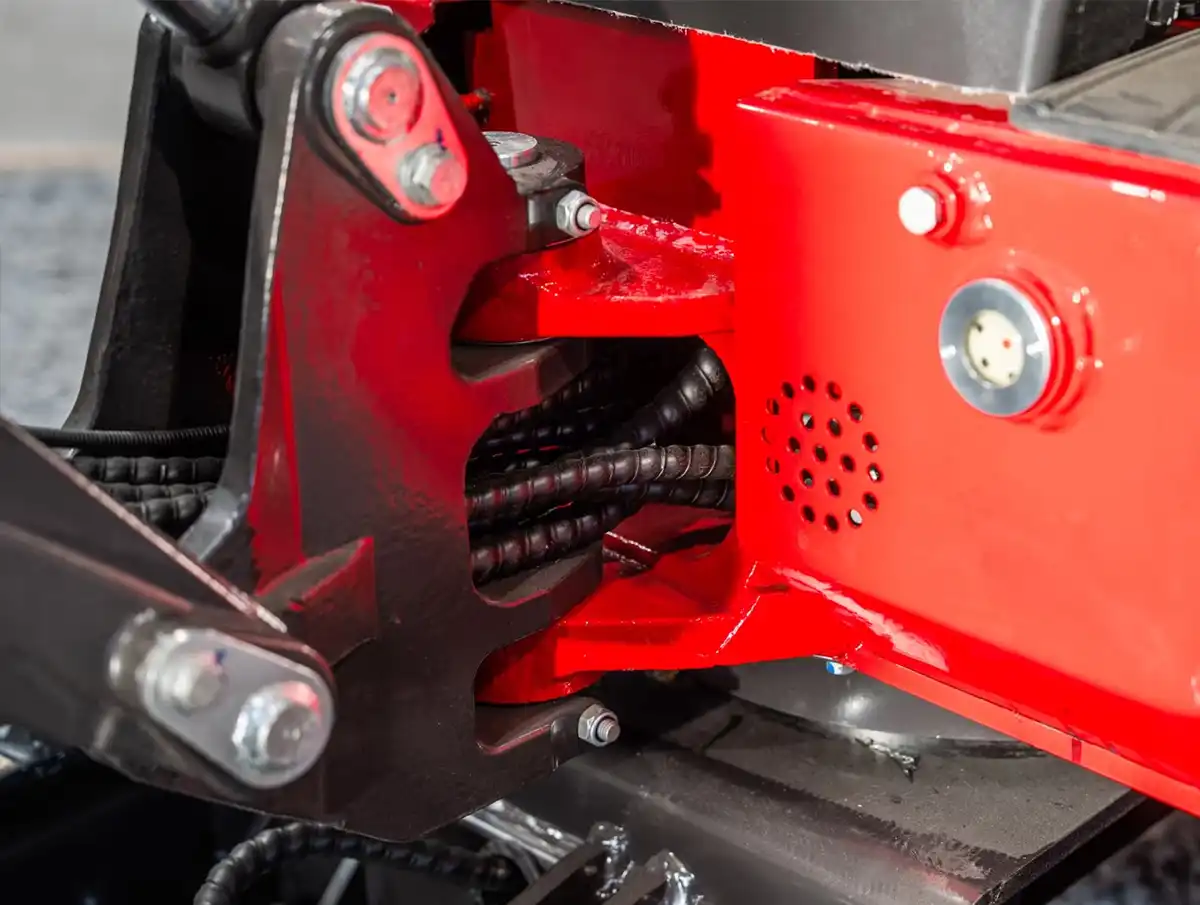

Telescopic & Swing Boom: The Pro-Series Setup

While the MY10-9 is our entry-level titan, it doesn't skimp on "big machine" features. The optional telescopic tracks allow you to narrow the stance to fit through a needle's eye and then widen out for stability. Combined with the 11rpm rotation speed, you can swing and dump dirt into a skip-bin with cycle times that rival 1.5-ton machines. It’s a 0.9-ton machine that thinks it’s a 2-ton machine.

Professional Buyer FAQ

Is the Koop 192F engine easy to maintain?
Absolutely. Actually, the 192F is one of the most common small diesel engines in the world. Filters and injectors are available at any local engine shop or via our local Rhinoceros dealers. It’s an air-cooled design, meaning there’s no radiator to leak or coolant to worry about during winter storage.

Can I switch between ISO and SAE controls?
Yes. We offer optional control pattern switching. This allows you to match the machine's response to your existing fleet or personal preference, ensuring you’re productive from the first minute on the seat.

How do I transport the MY10-9?
With a transport length of just 2,850 mm and a weight under 1,000kg, the MY10-9 is the "king of the trailer." You don't need a specialized heavy-duty truck; a standard SUV or pickup with a basic utility trailer is all you need to move between job sites.

Technical specifications are based on official factory testing. Dimensions may vary slightly based on specific attachment configurations (Swing boom vs. standard). Always verify site dimensions before operation.
